mitmproxy with java

Posted: 2020-12-09

I recently had the need to inspect what a java application was actually sending over the wire including the body content on an https connection.

Let's look at how we can achieve that with mitmproxy.

mitmproxy runs as an http proxy with both terminal and web inspection interfaces.

Installation is just a case of following the mitmproxy site instructions for your OS - or if you prefer - you can run it inside a docker image

Browser proxy

First step is to get mitmproxy up and running.

To start the command line version on port 8899:

mitmproxy --listen-port 8899

The first time it runs it will also create a set of certificates including a CA certificate. We will need these to intercept https traffic and the testing client (web browser or whatever) will have to trust the mitm CA certificate.

Once its running - to test that it works:

curl --proxy 127.0.0.1:8899 --cacert ~/.mitmproxy/mitmproxy-ca-cert.pem https://www.chrissearle.org

In the mitmproxy terminal there should be one flow now shown

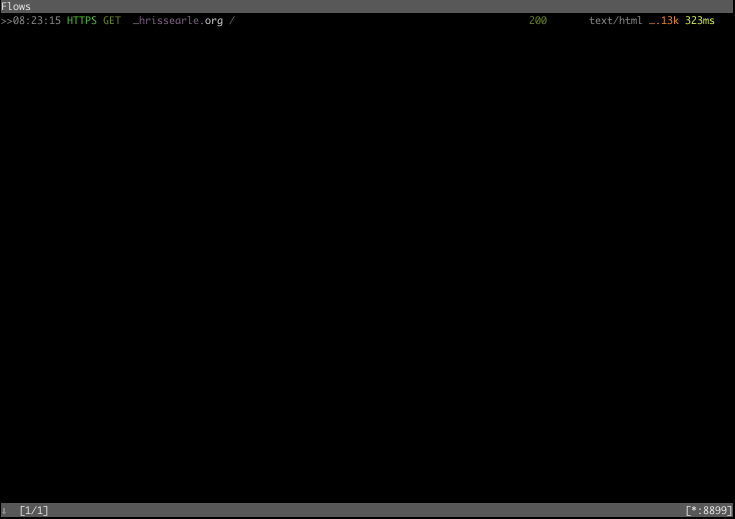

mitmproxy flow from curl
mitmproxy flow from curl

Using the arrow keys (up/down) to select a line - hitting enter drills down.

There are three views (left/right arrow to navigate).

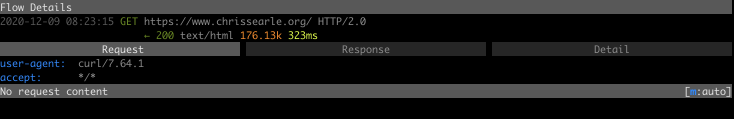

mitmproxy curl request
mitmproxy curl request

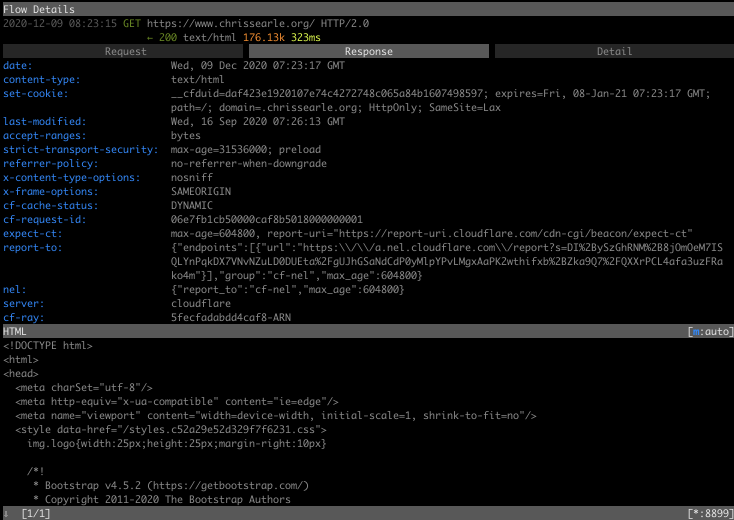

mitmproxy curl response
mitmproxy curl response

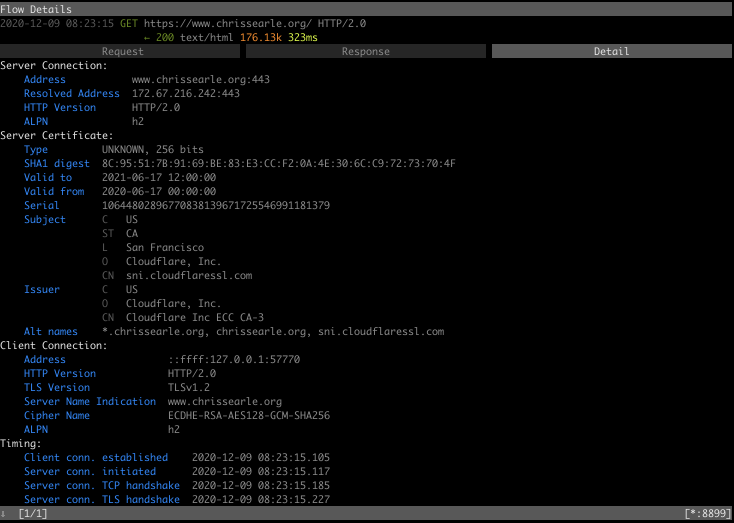

mitmproxy curl details
mitmproxy curl details

To get back to the flow list - just hit q

So - mitmproxy is working as expected. To use this with a real browser just set it as your browser's proxy (remember that the browser will have to trust the mitmproxy CA certificate - more on that on mitmproxy docs)

Java

mitmproxy is now working as a browser proxy. Time to try it out in java.

Many java web frameworks can use the system properties http.proxyHost, http.proxyPort, https.proxyHost and https.proxyPort.

But - two of the clients that I use need a little more work to set up a proxy.

Java HttpClient proxy

First - call get with no proxy:

public class ProxyTest {
  public static void main(String[] args) throws URISyntaxException, IOException, InterruptedException {
    HttpRequest request = HttpRequest.newBuilder()
        .uri(new URI("https://www.chrissearle.org"))
        .GET()
        .build();

    HttpClient client = HttpClient.newBuilder().build();

    HttpResponse<String> response =
        client.send(request, HttpResponse.BodyHandlers.ofString());

    System.out.println(response.body());
  }
}

Then - modify to use the default proxy (which reads the above system properties):

  public static void main(String[] args) throws URISyntaxException, IOException, InterruptedException {
    HttpRequest request = HttpRequest.newBuilder()
        .uri(new URI("https://www.chrissearle.org"))
        .GET()
        .build();

    HttpClient client = HttpClient.newBuilder().proxy(ProxySelector.getDefault()).build();

    HttpResponse<String> response =
        client.send(request, HttpResponse.BodyHandlers.ofString());

    System.out.println(response.body());
  }

However - if you now run this with

java -Dhttps.proxyHost=localhost -Dhttps.proxyPort=8899 ProxyTest

You will find that you get an SSL error - PKIX path building failed

This is because we also need to tell java about the mitmproxy CA certificate.

This is done by adding the certificate to the truststore of the JVM.

The location of this file depends on what OS, what java version, what java installation method etc. In my case - I'm testing with adoptopenjdk 11 under sdkman - so I found the cacerts file under $SDKMAN_DOR/candidates/java/11.0.9.hs-adpt/lib/security

I don't want to modify this in place - so - I copied the cacerts file local to the project.

We then need to import the mitmproxy CA:

keytool -import -trustcacerts -file ~/.mitmproxy/mitmproxy-ca-cert.pem -alias mitmproxycert -keystore cacerts

The default password for keystores is changeit - and then when it asks you if you wish to trust the certificate - say yes.

Now we can test again - this time setting the truststore system property:

java -Dhttps.proxyHost=localhost -Dhttps.proxyPort=8899 -DProxyTest  -Djavax.net.ssl.trustStore=cacerts

This time the command should complete and we should now see the call in the mitmproxy flow list

mitmproxy java httpclient request
mitmproxy java httpclient request

Java Spring WebClient proxy (netty)

A fair number of projects I work on are spring boot based, using the reactive webclient - and the underlying netty library.

For this - we will use a maven project generated at https://start.spring.io/ (java 11/maven/spring boot 2.4.0) with one added dependency - Spring Reactive Web.

This generates a pom file

Just to make things simple - we'll make this a command line app and just call the request synchronously in run - first without the proxy:

@SpringBootApplication
public class ProxytestApplication implements CommandLineRunner {

    public static void main(String[] args) {
        SpringApplication.run(ProxytestApplication.class, args);
    }

    @Override
    public void run(String... args) throws Exception {
        WebClient client = WebClient.builder().baseUrl("https://www.chrissearle.org").build();

        String page = client
                .get()
                .retrieve()
                .bodyToMono(String.class)
        .block();

        System.out.println(page);
    }
}

Now - let's add the proxy to the client instance. Here the host and port are hard coded but you could set them in application.properties or even read the system properties used above - all depending on what your app needs.

  public void run(String... args) throws Exception {
    HttpClient httpClient = HttpClient.create()
        .tcpConfiguration(tcpClient ->
                tcpClient.proxy(proxy -> {
                  proxy.type(ProxyProvider.Proxy.HTTP).address(new InetSocketAddress("localhost", 8899));
                }));

        ReactorClientHttpConnector connector = new ReactorClientHttpConnector(httpClient);

    WebClient client = WebClient.builder().clientConnector(connector).baseUrl("https://www.chrissearle.org").build();

    String page = client
        .get()
        .retrieve()
        .bodyToMono(String.class)
        .block();

    System.out.println(page);
  }

Again - if we run this then we get a PKIX path error - so we need to remember to add the truststore -Djavax.net.ssl.trustStore=cacerts

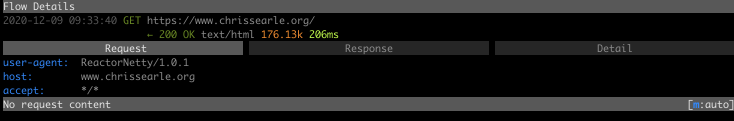

mitmproxy netty request
mitmproxy netty request

Summary

So - mitmproxy can be used to show the decrypted https stream when debugging (if we'd used a post call instead of get then the request part of the mitmproxy output contains this in cleartext).

mitmproxy can do a lot more - modification, replay, and has a bunch of addons - for more info - the mitmproxy docs
